This lab demonstrates how to design and implement secure file system management in a domain environment using Active Directory, Windows Server 2019, and Hyper-V.
The focus is on enterprise-style file sharing, using NTFS permissions, group-based access control, and mapped network drives, all aligned with real-world Windows domain best practices.
Lab Context & Prerequisites
This lab builds on earlier foundational work:
Prerequisites
-
Active Directory Domain Services installed and functional
-
Domain-joined client computer
-
Domain administrator credentials
-
Hyper-V networking configured
Lab Objective
To securely manage shared resources in a Windows Server domain by:
-
Deploying a file server
-
Using group-based NTFS permissions
-
Mapping network drives for domain users
-
Enforcing least-privilege access
Understanding File Systems in Windows (Foundation)
Before configuring permissions, it’s important to understand Windows file systems:
FAT32 (File Allocation Table 32)
-
Legacy file system
-
Maximum file size: 4 GB
-
❌ No file-level security
-
❌ Not suitable for domain environments
exFAT (Extended File Allocation Table)
-
Optimized for removable storage
-
❌ No NTFS-style permission model
-
❌ Not recommended for Windows domains
NTFS (New Technology File System)
-
Supports file and folder permissions
-
Enables auditing, encryption, and compression
-
✅ Required for enterprise and domain security
Conclusion: NTFS is the only suitable file system for secure domain-based file management.
Step-by-Step Lab Tasks
Step 1: Set Up the File Server
-
Use Windows Server 2019 to host shared folders
-
Ensure the server is domain-joined
On your Domain Controller, open Server Manager
Go to Add Roles and Features. → Choose File and Storage Services → Install the File Server role.
Step 2: Create Organizational Units and Security Groups
-
Create OUs for logical separation
-
Create security groups in Active Directory
-
Follow best practice: assign permissions to groups, not users

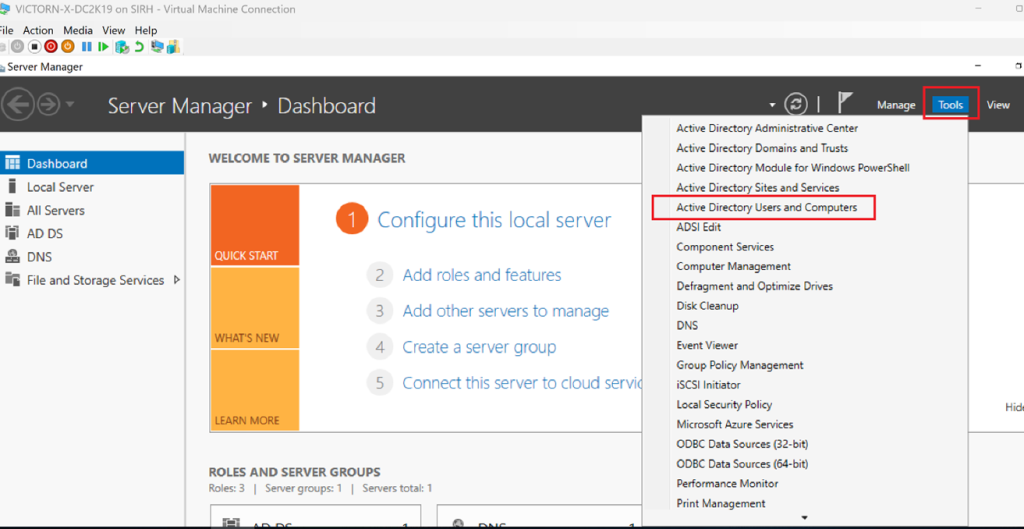

Go to Server Manager → Tools → Use Active Directory Users and Computers (ADUC)

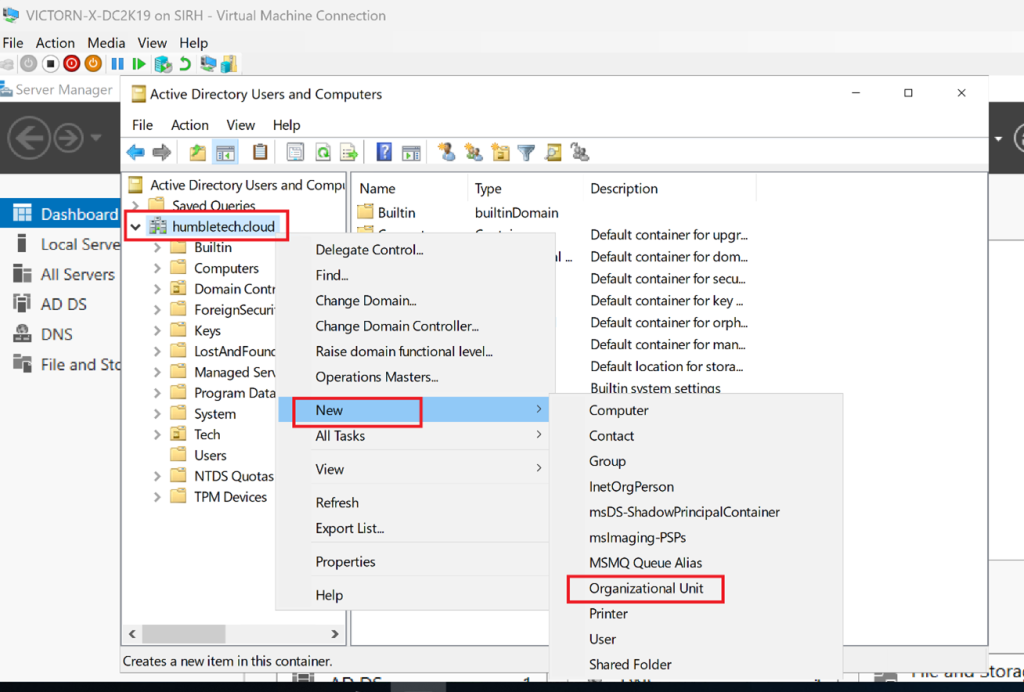

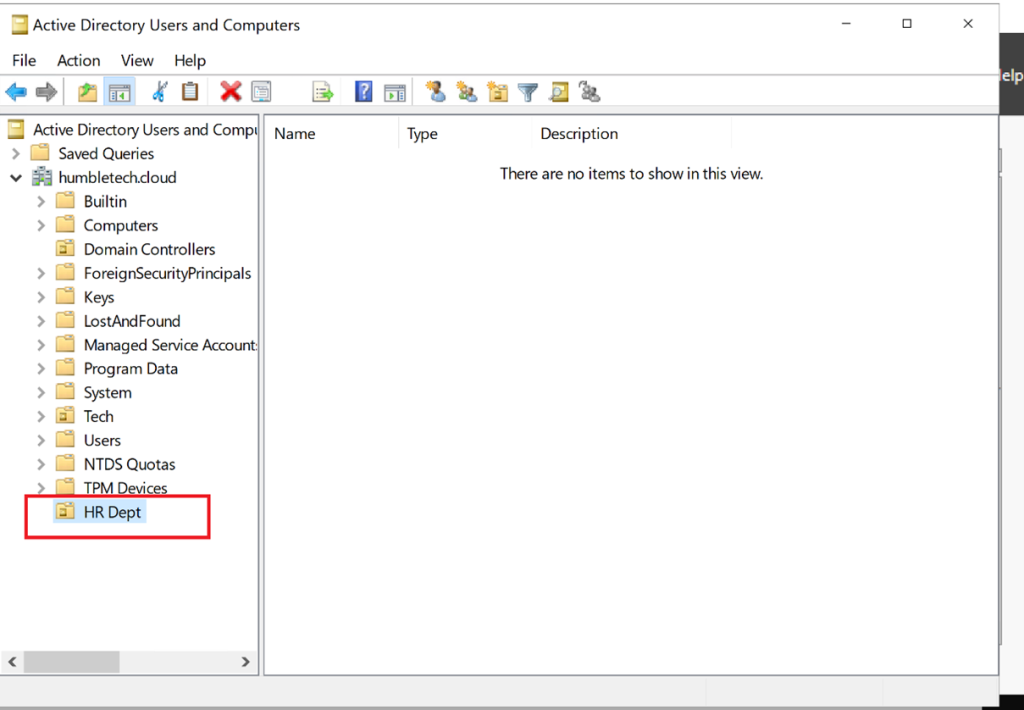

Right-click the domain (humbletech.cloud) → New → Organizational Unit
Name the OU (e.g., HR Dept) → Click OK

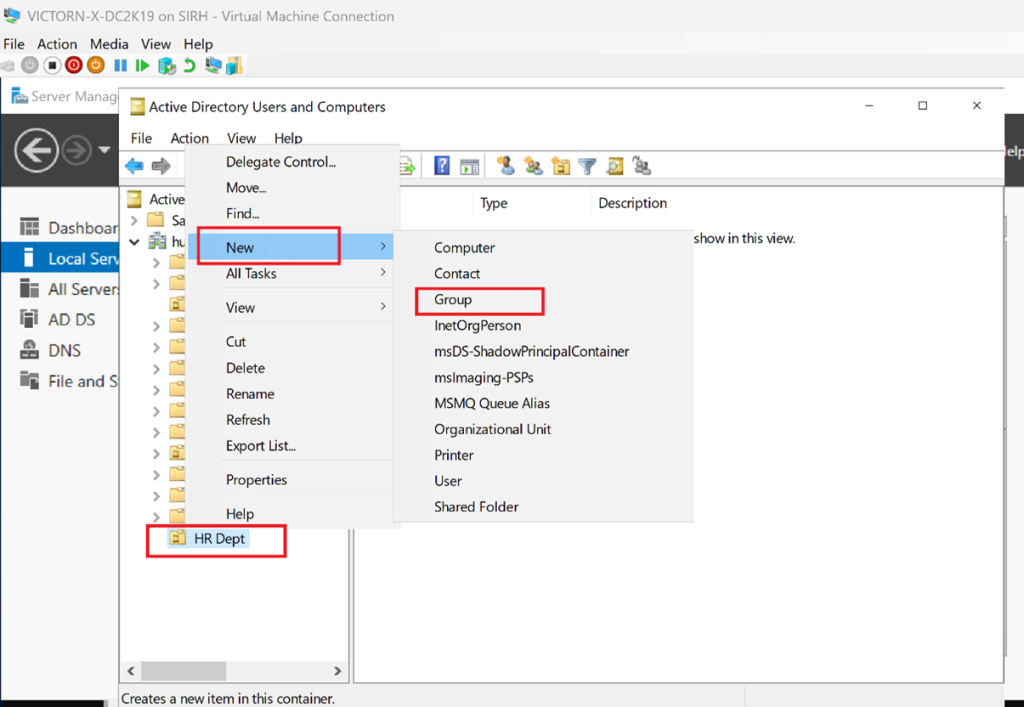

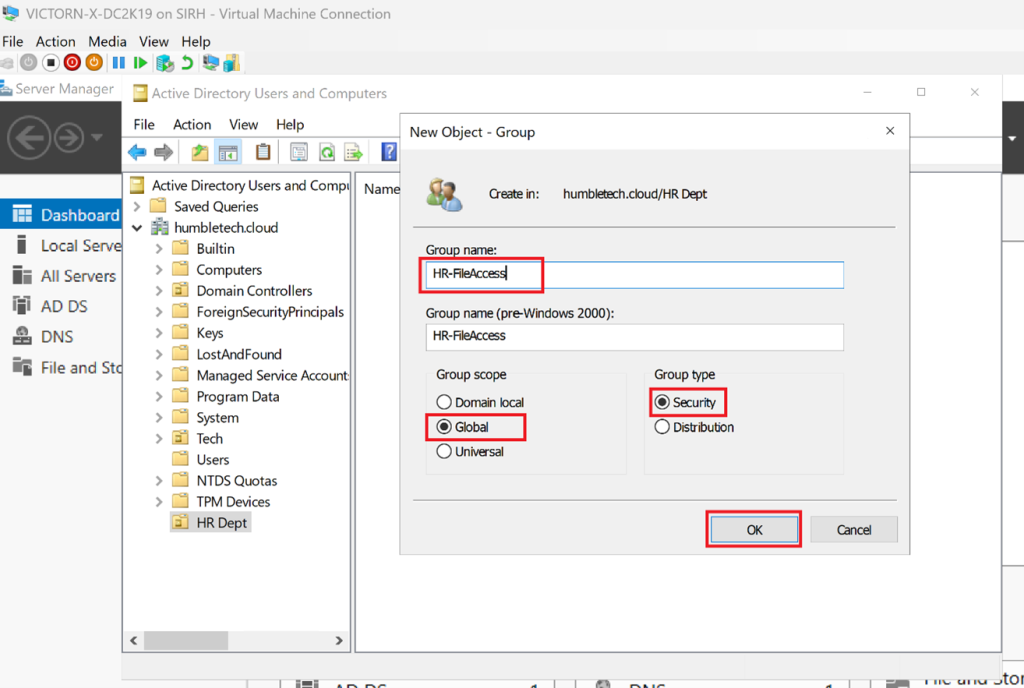

Navigate to the newly created OU → Right-click the OU → New → Group
Enter the group name (e.g., HR-FileAccess) →Choose group scope (e.g., Global) and type (e.g., Security) →Click OK

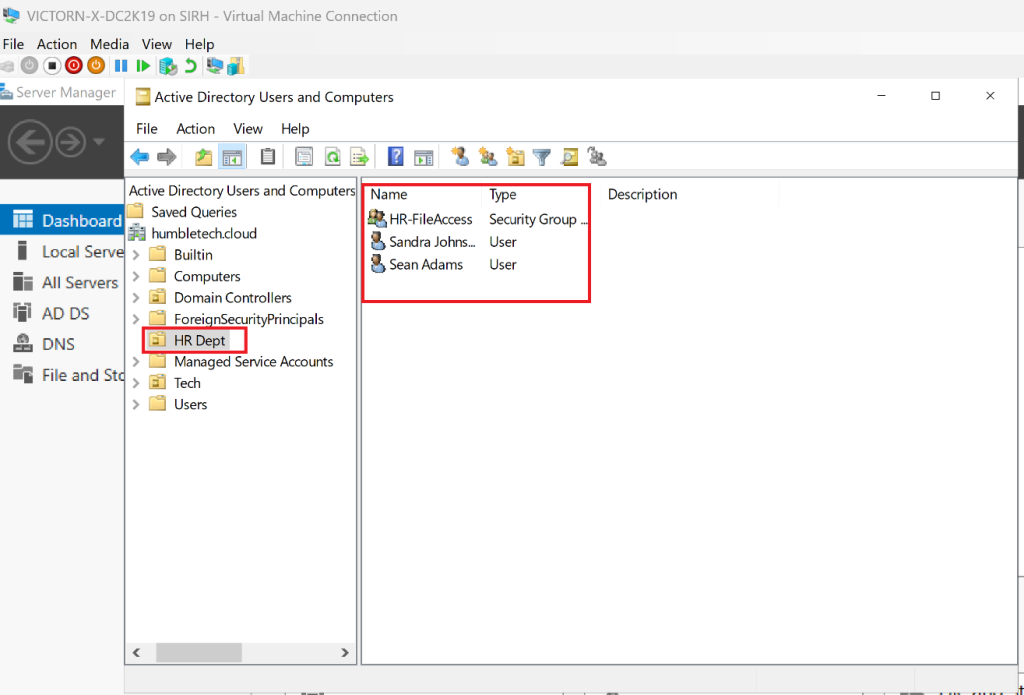

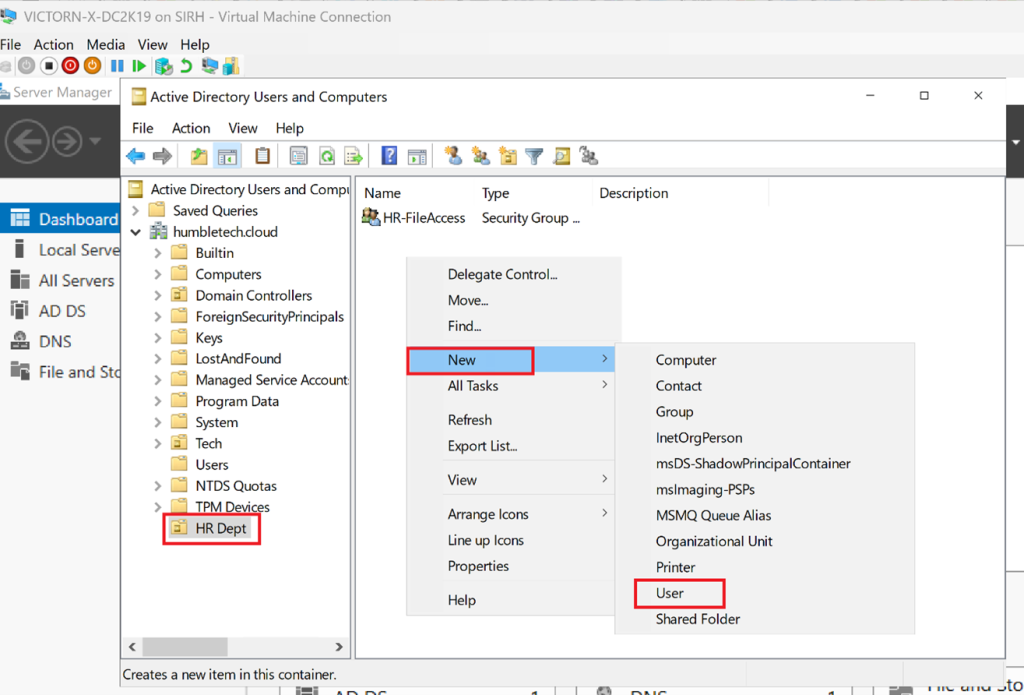

Right-click the OU → New → User

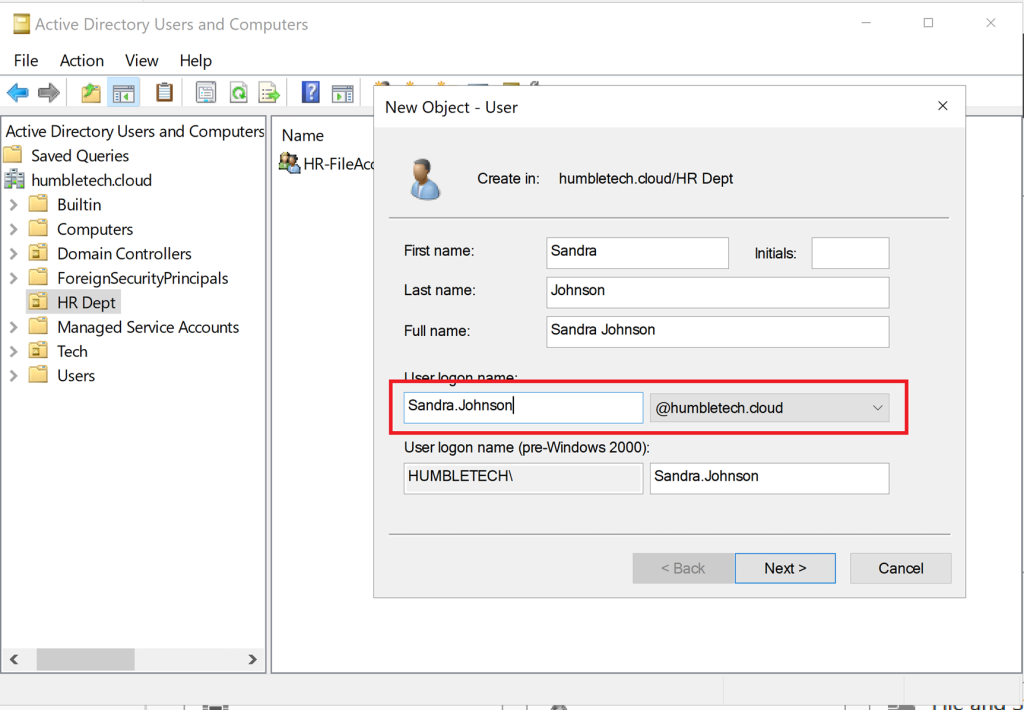

Fill in the First Name, Last Name, and User Logon Name → Set a password
Go to the Member Tab → Click Add
Search and select the group (e.g., HR-FileAccess) → Click OK
Step 3: Create and Share a Folder
-
Create a structured folder hierarchy (e.g., by department)
-
Configure basic share settings
Create a folder (e.g., C:\ C:\C:\VICTORN-X-DC2K19\HR-Document)

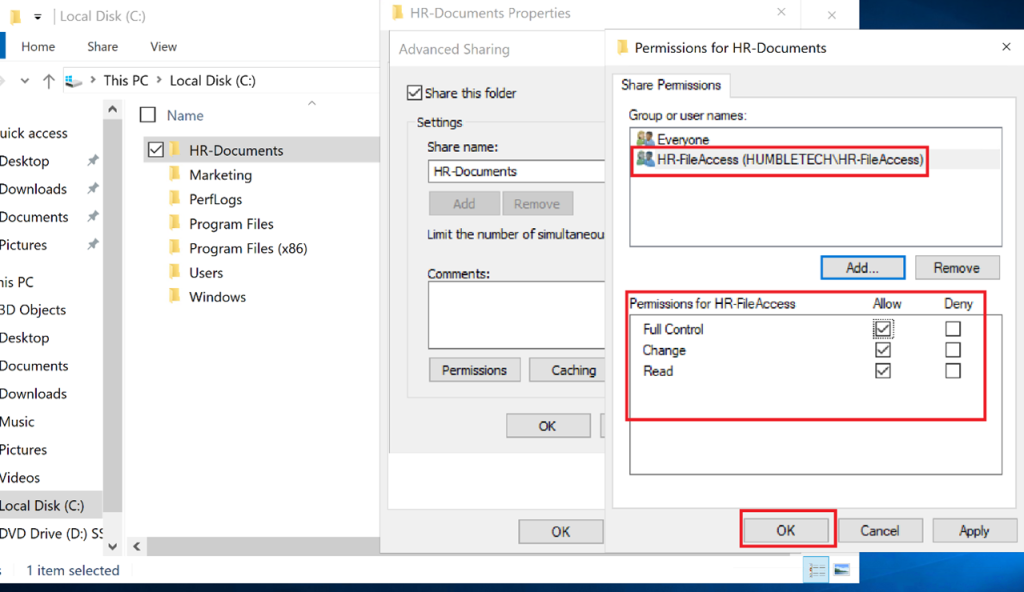

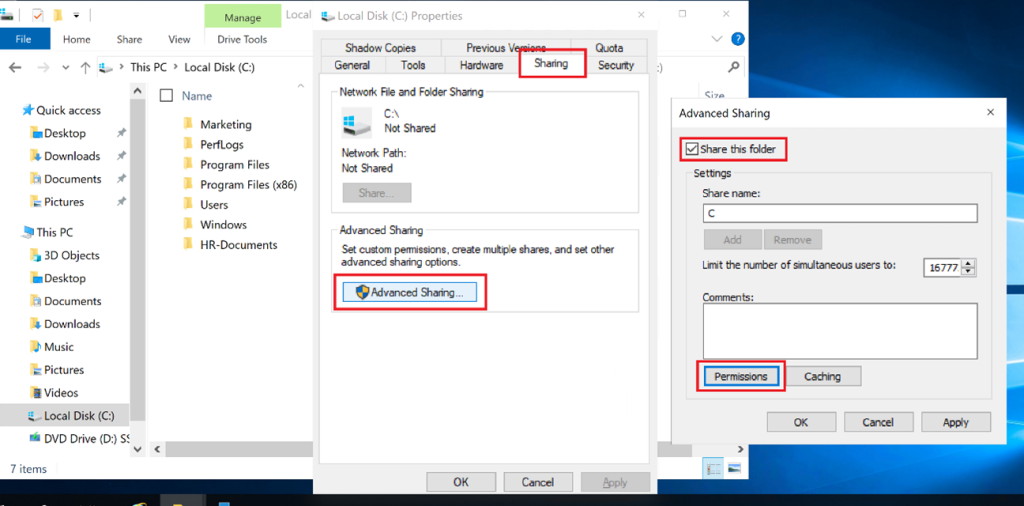

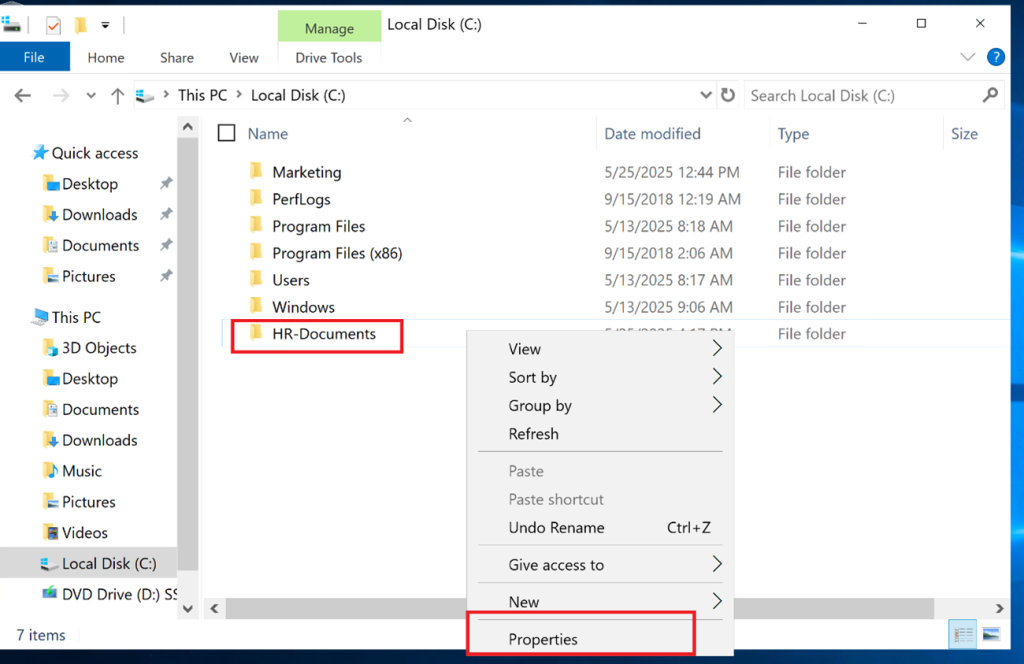

Right-click on the Folder → Properties → Sharing Tab → Advanced Sharing
Check “Share this folder”

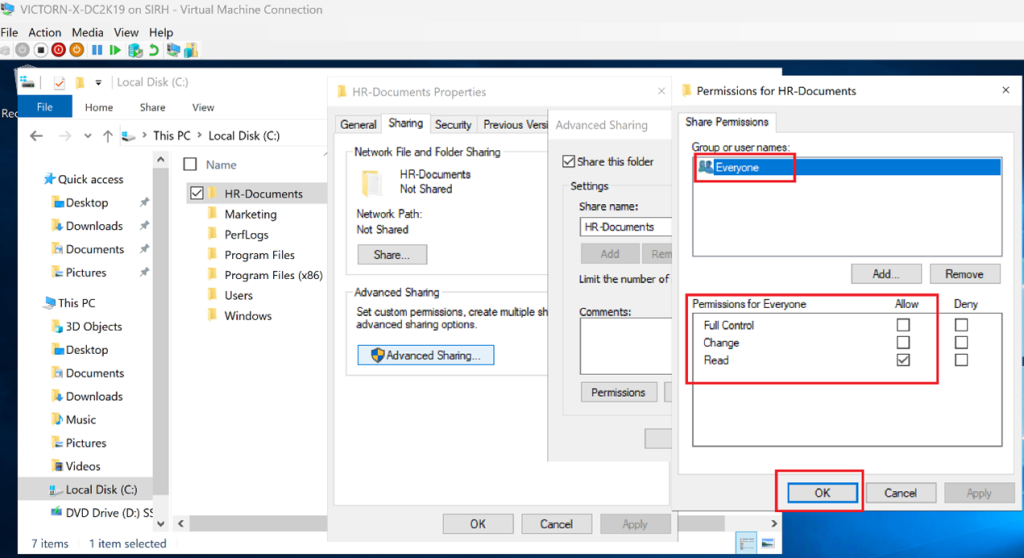

Click Permissions and assign Everyone: Read or custom settings

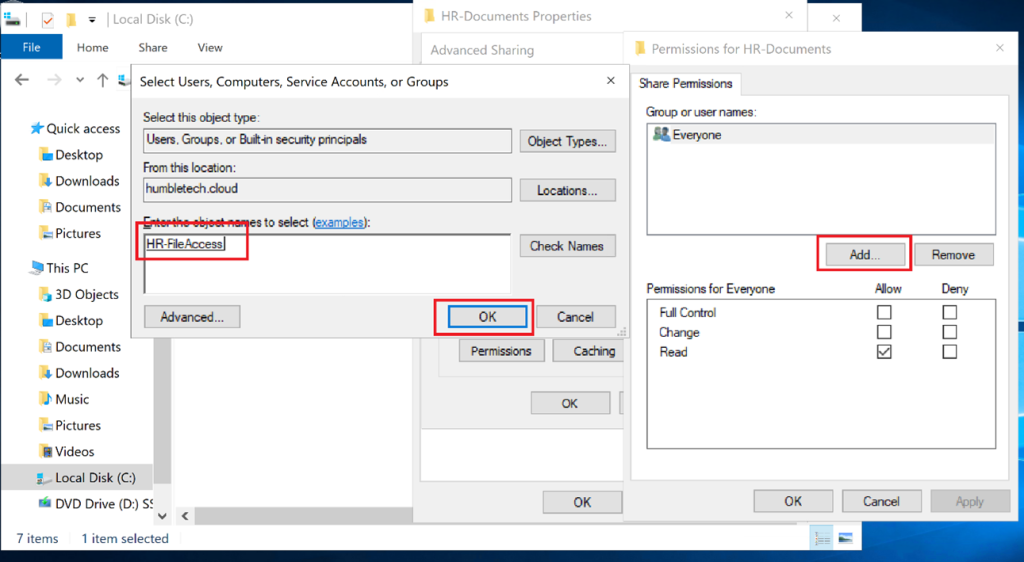

Click Add → Search and select the group (e.g., HR-FileAccess) → Click OK
Permissions for Everyone: and assign Full Control → Click OK
Step 4: Configure NTFS Permissions (File System Security)
-
Apply NTFS permissions at the folder level
-
Remove excessive inherited permissions
-
Grant Read / Modify / Full Control based on role

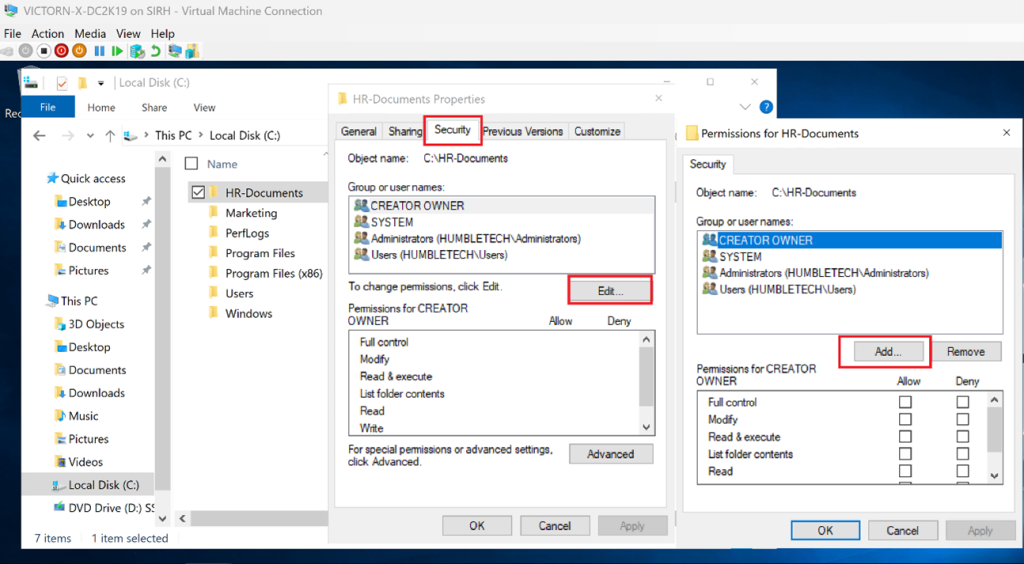

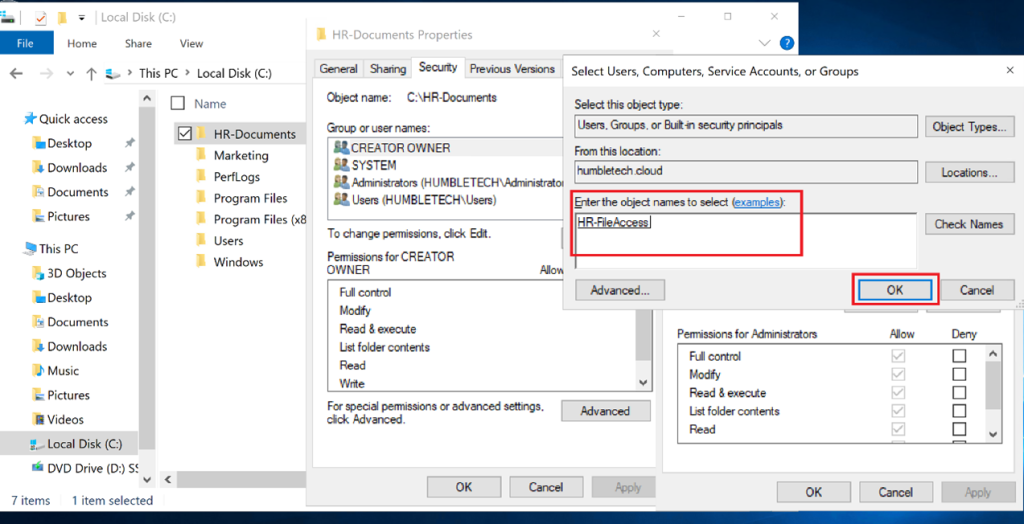

Go to Security tab → Click Edit → Add domain groups
Assign specific permissions: Full Control or Custom settings.
Tips: Always assign permissions to groups, not individual users, to follow best practices.
Step 5: Assign Group-Based Access to the Shared Folder
-
Assign NTFS permissions to security groups
-
Validate access by logging in as different users
On the folder’s Security tab, grant the HR-FileAccess group access
Apply the desired NFTS permissions
Step 6: Map Network Drives
-
Map shared folders as network drives
-
Ensure users only see resources they are authorized to access

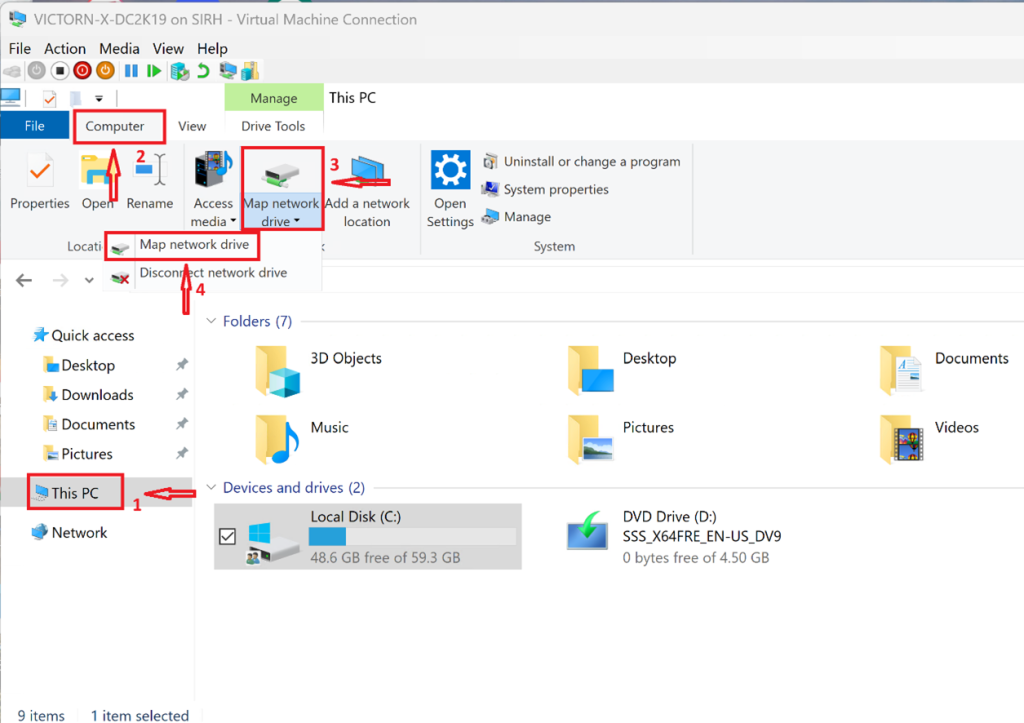

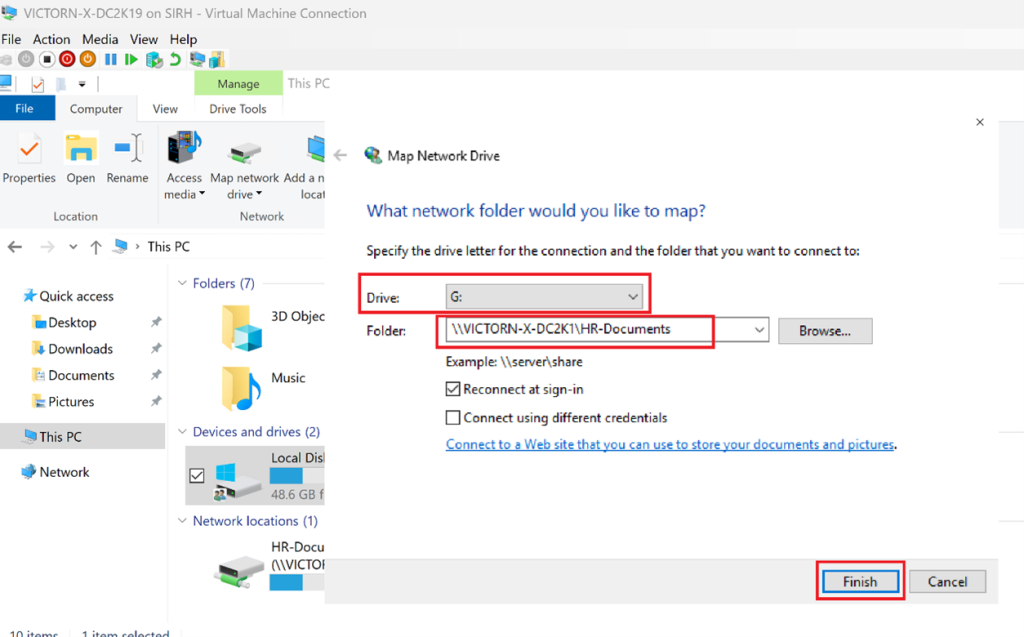

Navigate to This PC → Computer → Map network drive and select Map network drive

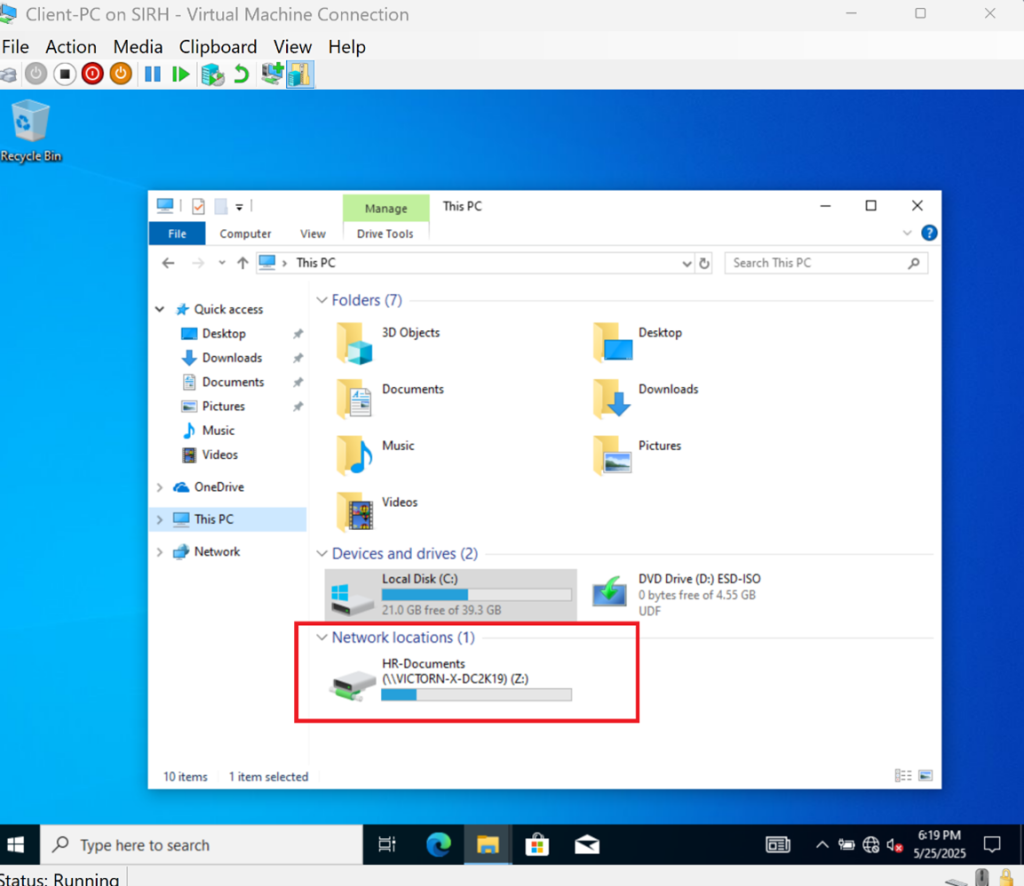

Map a Drive to the shared folder path (e.g., G: drive to \\VICTORN-X-DC2K19\HR-Documents)

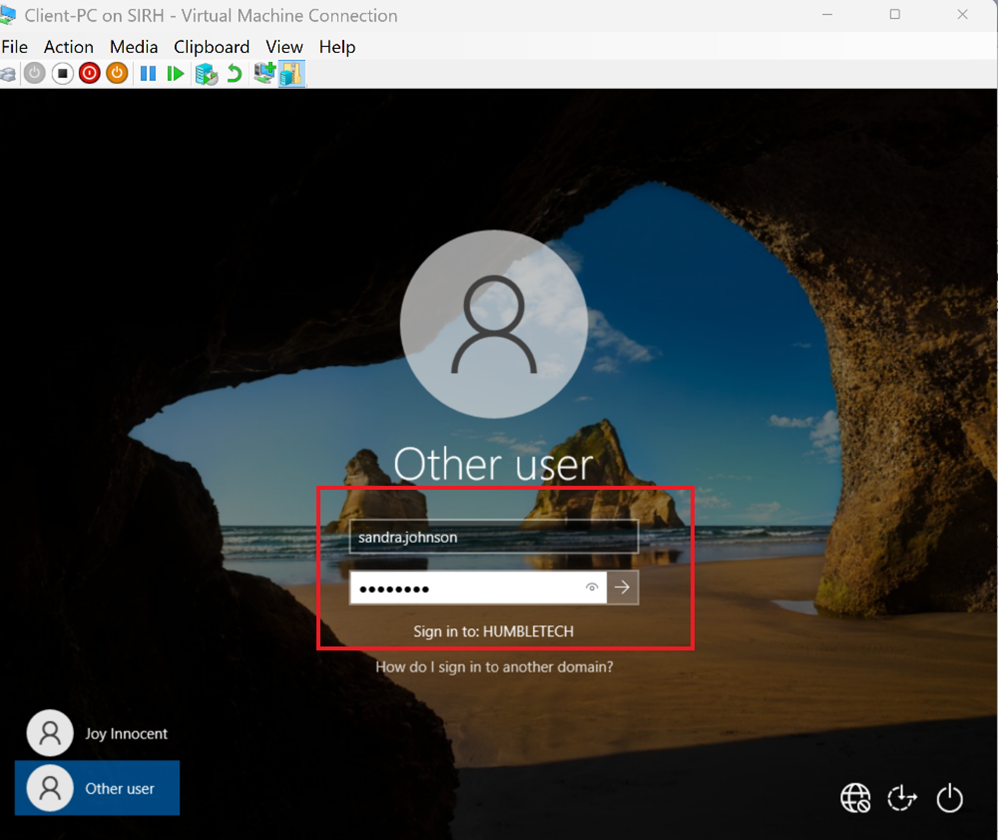

Sign in to your domain user PC you created (e.g., Sandra.johnson@humbletech.cloud)

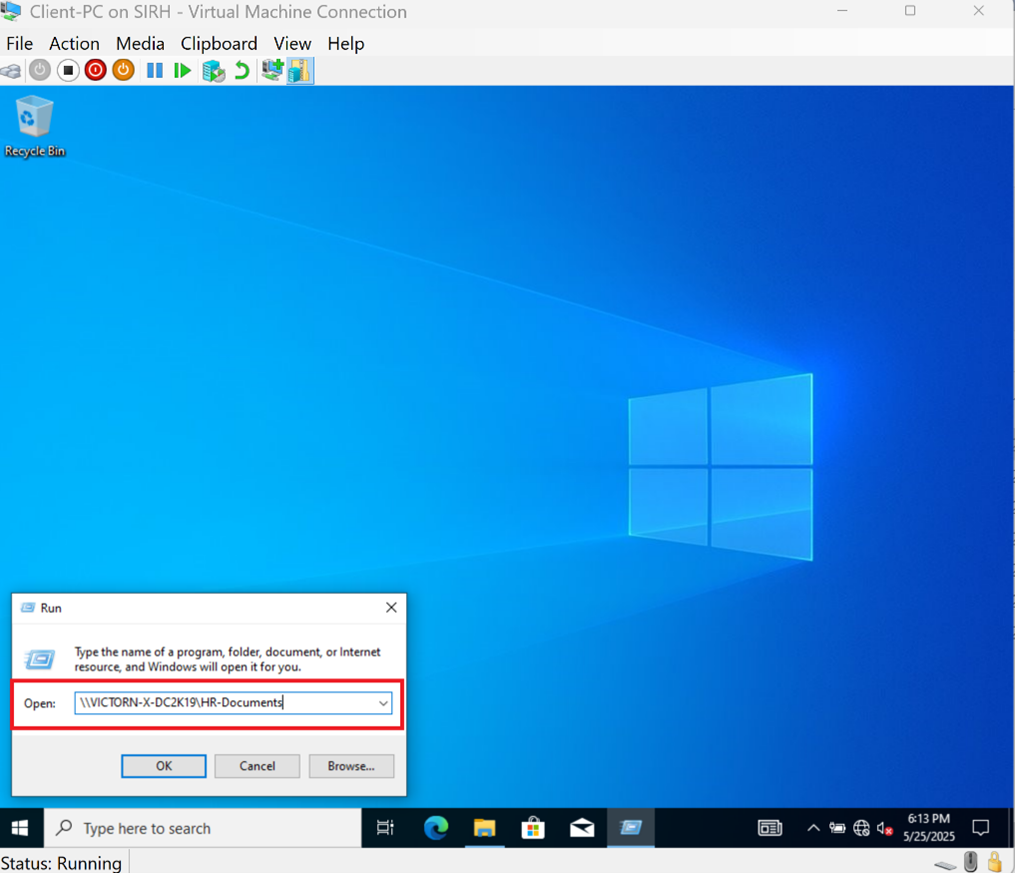

Use Run to open \\VICTORN-X-DC2K19\HR-Documents to confirm the HR Dept can access the Shared Folder on the Network location.
Congratulations! You Have Successfully Built a Secure File System Management with NTFS Permissions and Mapped Drives in a Windows Server
Why This Lab Matters
This project demonstrates:
-
Principle of least privilege access
-
Secure, scalable file access management
-
Real-world Active Directory file server design
-
Enterprise-ready identity and access control practices
These skills are fundamental in on-premises, hybrid, and cloud-connected Windows environments.
Lab Outcome
By completing this lab, the environment includes:
-
A secure NTFS-based file server
-
Group-controlled access to shared resources
-
Mapped drives for domain users
-
A realistic corporate IT file management setup
